AIOTHUB Temperature Data Logger delivers accurate temperature monitoring for equipment, storage, and processes, enabling early fault detection, quality control, regulatory compliance, reduced downtime, and consistent operational performance.
The AIOTHUB Temperature Data Logger continuously measures and records temperature in cold rooms, warehouses, labs, and production areas. It helps you catch problems early, protect product quality, meet compliance rules, and reduce downtime — all with reliable, precise readings.
A temperature data logger is a device that tracks temperature over time and stores each reading with a timestamp. This gives you a complete history of your environment, which is essential for cold chain safety, vaccine storage, and regulated industries.
With high-quality RTD and thermocouple sensors, the logger delivers accuracy down to ±0.1°C and 0.01°C resolution. It detects even small temperature changes, so you can act before product quality is affected. This precision makes it suitable for pharma, food, and laboratory use.
Set upper and lower temperature limits for your process. If the temperature crosses these limits, you instantly receive alerts by SMS, email, or cloud app. Quick warnings help you prevent spoilage, product damage, and compliance failures.
Every reading is encrypted and tamper-evident, with CRC and SHA256 checks to detect any changes. The logger meets HACCP, ISO 22000, and FDA 21 CFR Part 11 standards, so your records stay audit-ready.
If the internet goes down, the logger keeps recording and stores data locally on an industrial SD card. Once connectivity returns, all stored readings upload automatically with no gaps. Battery backup of 48–120 hours also protects data during power failures.
Download daily, weekly, or monthly logs in Excel or PDF for inspectors and audits. The system supports 2-point and 3-point calibration with correction factors, keeping your measurements traceable and accurate over time.
The rugged IP65 enclosure resists dust and water and works in freezer conditions. AES-256 encryption, secure boot, and device authentication keep your data safe from tampering. The AIOTHUB Temperature Data Logger is designed and made in India, giving you dependable performance with local support.
| Input Voltage | 9-36 V DC |
|---|---|
| Operating Temp | −40°C to +125°C |
| Connectivity | Wi-Fi (2.4GHz), Ethernet, 4G LTE (Optional) |
| Digital Inputs | 1 Isolated Channel |
| Dimensions | 120mm x 80mm x 30mm |
| Core System | ||
|---|---|---|
| Processor | 32-bit Industrial MCU | Stable long-term logging |
| RTC | ±2 ppm with battery backup | Accurate timestamps |
| Time Sync | NTP + Cellular + GPS optional | CFR-compliant time integrity |
| Watchdog & Brownout | Enabled | Prevents data loss |
| Temperature Measurement | ||
| Sensor Type | PT100, PT1000, NTC, Digital Probe | Flexible sensor support |
| Measurement Range | −40°C to +125°C | Cold rooms to ovens |
| Accuracy | ±0.1°C (PT100), ±0.3°C (NTC) | High precision |
| Resolution | 0.01°C | Detects small temperature changes |
| Calibration | 2-point or 3-point calibration | Audit compliance |
| Probe Length | 2m to 10m | Inside freezers, chambers |
| Input | ||
| Channel Count | 1 | Simple & cost-effective |
| Input Type | Wired probe | Reliable readings |
| Data Logging | ||
| Logging Interval | 1 sec to 60 min | HACCP & pharma compliant |
| Storage | 8–32 GB Industrial SD Card | 1–5 years of data |
| Backup | Internal Flash | Zero data loss |
| Data Format | Encrypted CSV + JSON | Audit & cloud ready |
| Checksums | CRC + SHA256 | Tamper detection |
| Data Integrity | CRC + power-loss protection | No corrupted files |
| Alarms & Alerts | ||
| Alarm Type | High / Low temperature | Spoilage & quality protection |
| Local Alert | Buzzer & LED | Instant warning |
| Remote Alert | SMS / Email / Cloud App | Immediate action |
| Connectivity | ||
| USB | USB-C | Plug & download |
| Wifi | Optional | Local monitoring |
| Cellular | Optional 4G / NB-IoT | Remote cold rooms |
| Cloud | FDA-ready cloud | Central compliance |
| Power | ||
| Input | 9–36 V DC | Industrial supply |
| Battery Backup | 48–120 hours | Power failure safety |
| Low-Power Mode | Yes | Long backup time |
| Security | ||
| Encryption | AES-256 + TLS 1.3 | Data protection |
| Authentication | Device certificates | Prevent manipulation |
| Secure Boot | Enabled | No fake firmware |
| Mechanical | ||
| Enclosure | IP65 Industrial | Dust & water resistant |
| Operating Temp | −40°C to +85°C | Freezer compatible |

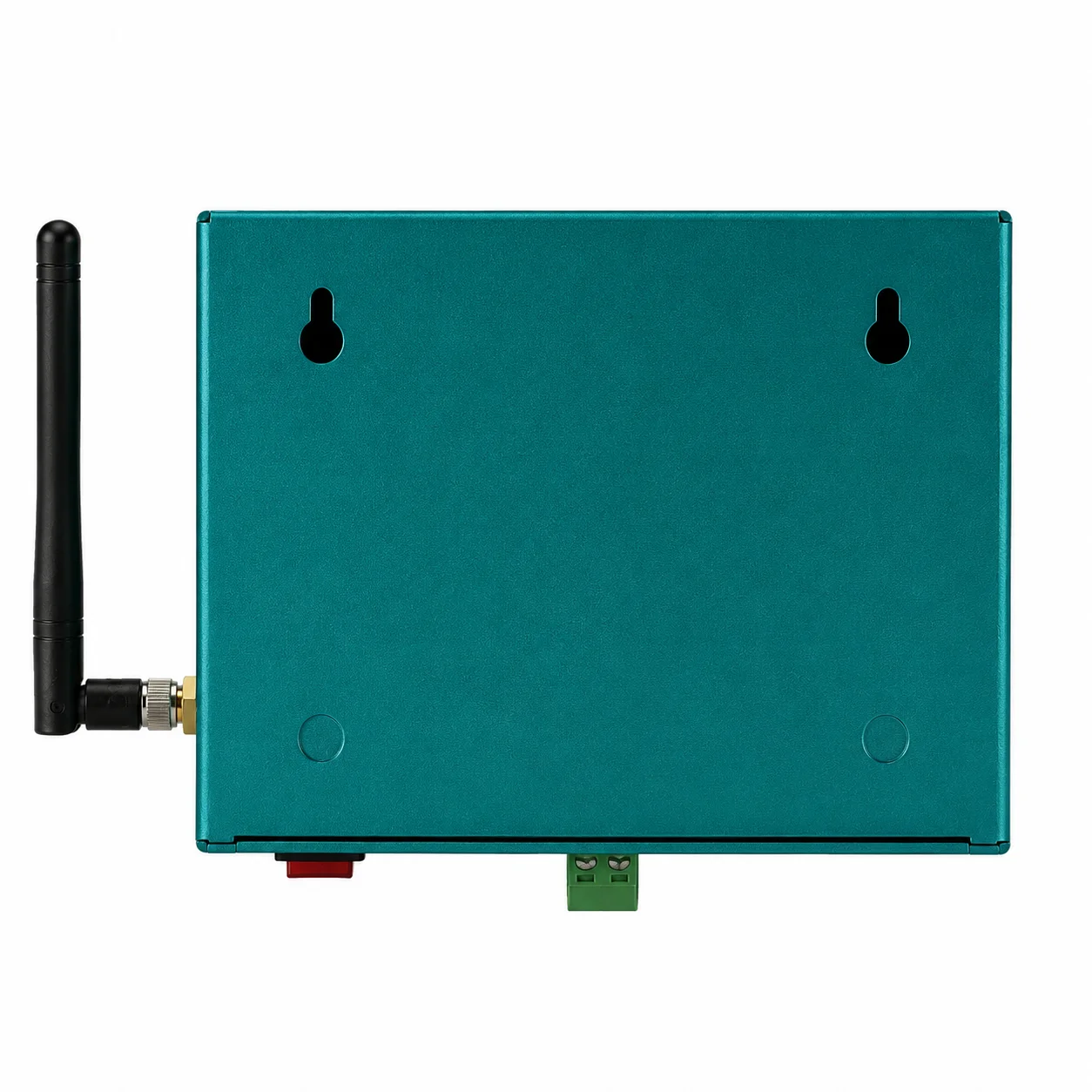

| Mounting | Wall / DIN rail | Easy installation |
| Compliance | ||
| Food | HACCP / ISO 22000 | Quality assurance |
| Pharma | 21 CFR Part 11 ready | Audit ready |
| Data Export | CSV, PDF | Inspectors & reports |
Six factors separate a logger that quietly protects your temperature-sensitive operations from one that fails during an audit.
Select sensors that cover the full spectrum needed (e.g. −80°C for ultra-low freezers up to +125°C for heat chambers).
Pharma stability chambers need minute-by-minute logs; general building storage might only need hourly logs.
Decide on communication methods (Wi-Fi, 4G, Ethernet) to stream alerts instantly. Modbus and MQTT feed directly into existing SCADA systems.
Local SD buffering keeps data continuous and prevents gaps in audit trails during network dropouts.
Crucial for cold chain (HACCP, GxP, FDA 21 CFR Part 11) to ensure tamper-evident records.
Utilize battery backup to log temperature uninterrupted during blackouts.
The AIOTHUB Temperature Data Logger works with multiple probe classes to cover all thermal environments, from cryogenic storage to high-heat ovens.
High-precision RTD probes with accuracy down to ±0.1°C for laboratory stability testing.
Heavy-duty probes (Type J, K, T) for industrial ovens, metal curing, and extreme heat.
Cost-effective, reliable sensors for commercial refrigeration, vaccine rooms, and cold chain.
Integrated digital sensor probes for simple, plug-and-play local environment ambient tracking.
From audit season to a midnight cold-storage temperature spike, the Temperature Data Logger keeps your records complete and your team notified.
Tamper-evident, time-stamped records built for GxP, FDA 21 CFR Part 11, HACCP, and ISO audits.
Instant SMS, email, and WhatsApp alerts the moment temperature crosses your safe threshold limits.
On-device SD storage buffers data through network outages and auto-syncs to the cloud upon restoration.
Modbus RTU/TCP, MQTT, and OPC-UA drop straight into your existing HVAC, PLC, and cloud stack.
No integrator, no code. Four steps to continuous, compliant monitoring.
Connect the temperature probe (RTD or Thermocouple) to the isolated input and power the unit.
Set sampling rate, temperature units (°C/°F), and device name from any browser.
Define safe temperature ranges and choose who gets notified by SMS, email, or WhatsApp.
View live temperature trends and historical logs on web and mobile.
Wherever accurate temperature control drives compliance, safety, or quality, our temperature logger fits in.
Cold chain, vaccine storage, stability testing chambers, and warehouse mapping with FDA 21 CFR Part 11 compliance.
HACCP temperature monitoring from processing plants, transport trucks to retail displays.
Heat treatment, curing oven processes, chemical reactor temp logs, and asset monitoring.
Critical storage, sample stability, and process temperature verification inside incubators.
Maintaining temperature limits in large ambient warehouses and climate-controlled storage.
Preventing hardware overheating, server rack failures, and optimizing HVAC cooling efficiency.
A side-by-side feature comparison to help you choose the right architecture for your deployment.
| Feature | Single-Channel | Multi-Channel |
|---|---|---|
| Parameters monitored | 1 dedicated channel | Up to 8 channels |
| Best for | One critical variable per point | Multi-point or multi-sensor sites |
| Starting price | ₹12,000 | Contact for quote |
| Real-time alerts | Included | Included |
| Cloud dashboard | Included | Included |
| Local SD storage | Yes | Yes |
| Protocols (Modbus / MQTT / OPC-UA) | Yes | Yes |
The questions buyers and engineers ask us most before ordering.
AIOTHUB Temperature Data Loggers support high-precision RTD sensors (PT100, PT1000), thermocouples (J, K, T types), and digital probes, covering a range of −40°C to +125°C.
Yes, when paired with our external cryogenic PT100/RTD probes, the logger can safely and accurately record ultra-low temperatures down to −80°C or below.
Yes, every logger can be supplied with a NABL-traceable calibration certificate. We also offer scheduled re-calibration services.
Yes. In combination with our cloud portal, it provides tamper-evident, time-stamped logs, user access controls, and electronic signatures to meet FDA 21 CFR Part 11 and GxP guidelines.
The device features an industrial SD card slot (up to 32GB) that can buffer weeks of temperature data, auto-uploading it as soon as connection is re-established.
Yes. We offer free shipping across India, a 1-year warranty, and 24/7 technical support. On-site commissioning is available for larger facility deployments.
Tell us about your application and we'll configure, calibrate, and ship a temperature logger ready to run — pan-India, free shipping, 1-year warranty.
