Empowering the next generation of smart factories with seamless connectivity, rugged durability, and real-time intelligence. Choose the configuration that fits your operational scale.

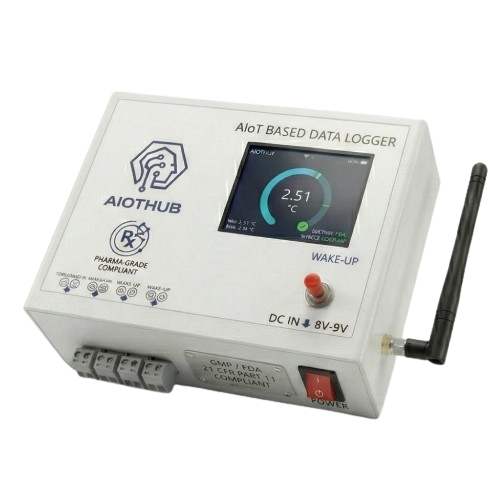

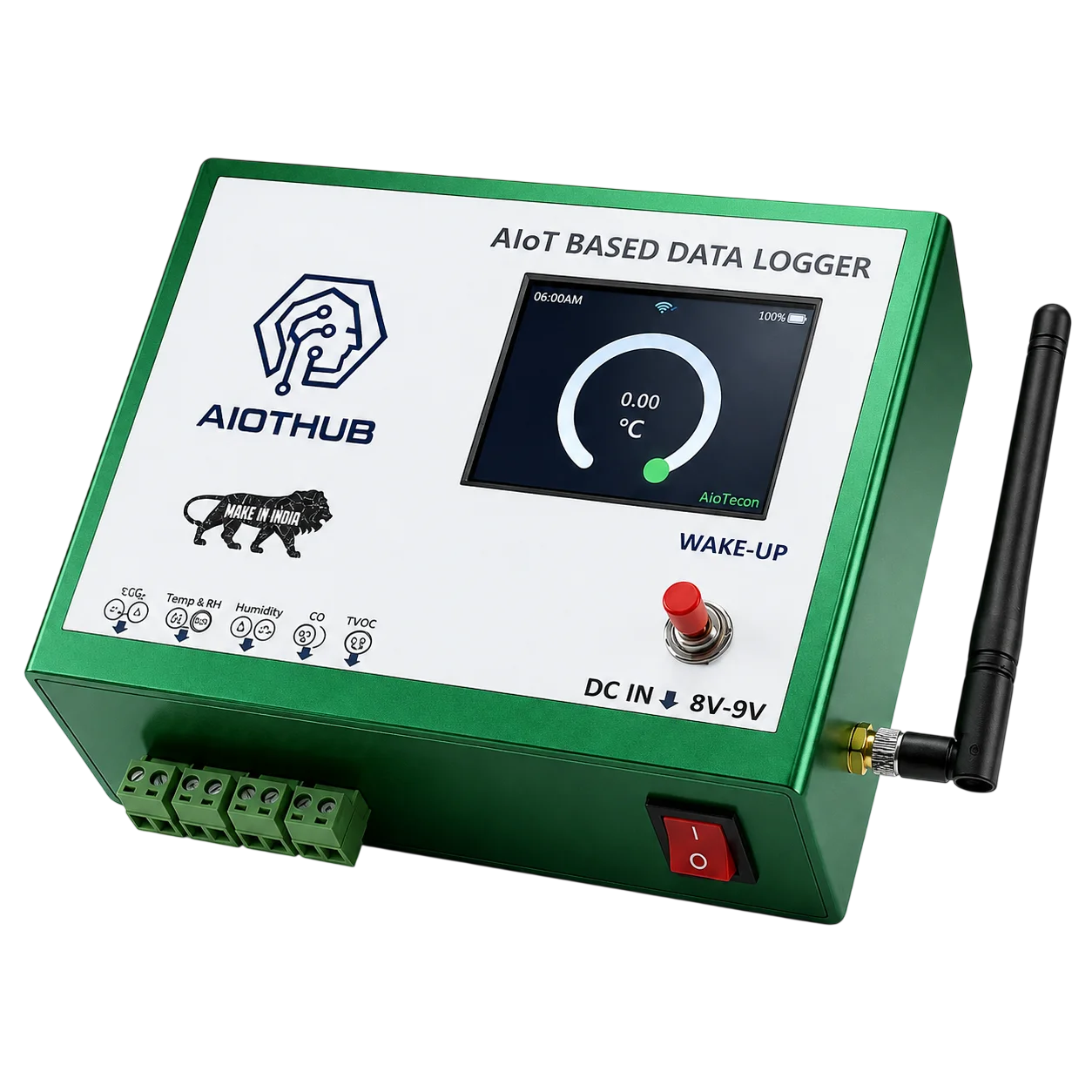

The AIoTHUB Data Logger is engineered to provide unmatched visibility into your shop floor operations. With support for multiple protocols (Modbus, MQTT, OPC-UA), it acts as a universal gateway for your legacy and modern machines.
Supports Wi-Fi, 4G/LTE, and Ethernet for redundant connectivity.
Built-in SD card slot ensures no data loss during network outages.
Web-based configuration dashboard required zero coding knowledge.
| Input Voltage | 12V - 24V DC |
|---|---|
| Operating Temp | -10°C to 65°C |
| Connectivity | Wi-Fi (2.4GHz), Ethernet, 4G LTE (Optional) |
| Digital Inputs | 8 Isolated Channels |
| Dimensions | 120mm x 80mm x 30mm |
| Processor & Memory | |
|---|---|
| CPU | Dual-Core ARM Cortex-A7 @ 1.2GHz |
| RAM | 512MB DDR3 |
| Storage | 4GB eMMC (Expandable via SD up to 128GB) |
| Communication Interfaces | |
| Ethernet | 1x 10/100 Mbps RJ45 Port |
| Serial Ports | 2x RS485 (Modbus RTU), 1x RS232 |
| USB | 1x USB 2.0 Host |
| Power & Environment | |
| Power Supply | 9-36V DC Wide Input |
| Power Consumption | < 5W |
| Mounting | DIN Rail Mountable |
Six factors separate a logger that quietly protects your operation from one that becomes a maintenance headache.
Size for the full span the variable can reach, not just normal conditions — or it clips at the exact moment an excursion happens.
Balance resolution, storage, and power. Warehouse temp needs minutes; a pressure or vibration event needs seconds. Configurable 1s–hourly.
Decide how data leaves (Wi-Fi, 4G/LTE, Ethernet) and enters your stack. Modbus, MQTT, and OPC-UA drop into existing SCADA and PLCs.
Networks fail; the record shouldn't. Local buffering plus expandable SD keeps the audit trail continuous through outages.
In pharma, food, and healthcare, tamper-evident, time-stamped data with access control is what stands up to an audit.
Match input voltage, operating temperature, and enclosure to where it lives — cold store, wash-down area, or server room.
Every AIOTHUB Industrial Data Logger is built to support the exact parameters that drive your smart factory operations.
−10°C to 65°C ambient with external probe support for cold chain and process heat.
0–100% RH logging for cleanrooms, storage, and HVAC validation.
Track power quality, load, and consumption across your equipment.
Line, tank, and differential pressure for pumps, boilers, and pipelines.
From audit season to a shop-floor power fluctuation, AIOTHUB Industrial Data Loggers keep your records complete and your team notified.
Tamper-evident, time-stamped records built for GxP, FDA 21 CFR Part 11, HACCP, and ISO audits — exportable in seconds.
Instant SMS, email, and WhatsApp alerts the moment a reading crosses your safe threshold — so you act before product is lost.
On-device SD storage buffers data through network outages and auto-syncs to the cloud the moment connectivity returns.
Modbus RTU/TCP, MQTT, and OPC-UA drop straight into your existing SCADA, PLC, and cloud stack — no rip-and-replace.
No integrator, no code. Four steps to continuous, compliant monitoring.
Wire the parameter probe or sensor input to the logger and power the unit with 9–36V DC.
Set sampling rate, units, and device name from any browser — zero coding knowledge needed.
Define safe ranges and choose who gets notified by SMS, email, or WhatsApp.
View live readings and historical trends on web and mobile, on-site or remote.
Wherever environmental conditions or machine parameters drive compliance, safety, or uptime, our data loggers fit right in.
Cold-chain, stability chambers, and warehouse mapping with full 21 CFR Part 11 audit trails.
HACCP-grade temperature and humidity logging from cold storage to transport.
Machine uptime, energy use, and process monitoring on the shop floor and legacy lines.
Flow, pressure, and quality tracking across distribution and treatment networks.
Ambient and environmental compliance across large storage facilities at scale.
Load, voltage, and equipment health monitoring for critical and remote assets.
A side-by-side feature comparison to help you choose the right architecture for your deployment.
| Feature | Single-Channel | Multi-Channel |
|---|---|---|
| Parameters monitored | 1 dedicated channel | Up to 8 channels |
| Best for | One critical variable per point | Multi-point or multi-sensor sites |
| Starting price | ₹8,499 | Contact for quote |
| Real-time alerts | Included | Included |
| Cloud dashboard | Included | Included |
| Local SD storage | Yes | Yes |
| Protocols (Modbus / MQTT / OPC-UA) | Yes | Yes |
The questions buyers and engineers ask us most before ordering.
Yes. The device comes with an optional 4G LTE module. You can insert a standard Mini-SIM card to enable cellular connectivity in remote or standalone setups.
Absolutely. The device supports Modbus TCP/IP, Modbus RTU, and MQTT, making it compatible with most modern SCADA systems, PLCs, and cloud platforms.
Yes, it has internal flash memory and supports industrial SD cards for data buffering. Once connectivity is restored, it uploads the stored data automatically with no gaps in the record.
We offer a standard 1-year warranty on hardware, which can be extended up to 3 years with our premium support package.
Yes. Each unit can be supplied with a NABL-traceable calibration certificate, and we offer scheduled re-calibration to keep your compliance records audit-ready year after year.
Yes. When used with our cloud software, the system provides tamper-evident, time-stamped records, electronic signatures, and user access controls meeting FDA 21 CFR Part 11, GxP, and ISO documentation standards.
Tell us what you need to monitor and we'll configure, calibrate, and ship a logger ready to run — pan-India, free shipping, 1-year warranty.
